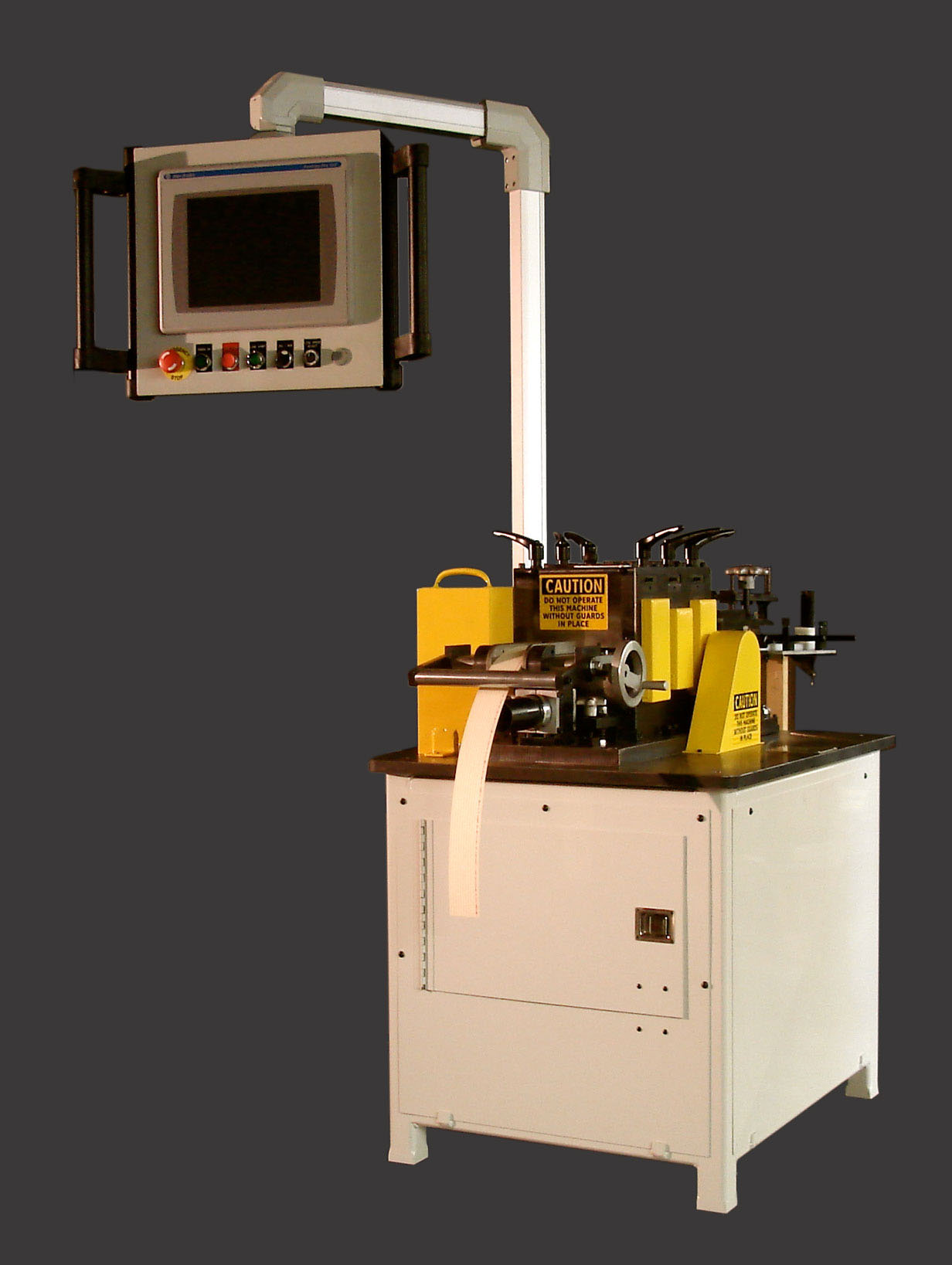

Pleat height rang: .375" (9.5mm) to 1.25" (31.75mm)
Wed speeds up to 510 feet per minute (155 meters per minute)
5 minute score head change over -- no tools required!
Heavy Duty Air Cartridge Pleating Line
30" capacity line for processing low energy air filter paper
Includes unwind, pre-heat, slitter/pleater and post-heat
Adjustable range of 3/8" to 3"
Maximum Output of 2,000 pleats per minute
Embosses pleat knuckles for enhanced pleat spacing.
Panel Filter (Pocket) Pleating Line
w/ edge sealing collector screws Machine for pleating and applying hot melt along the edges of the paper strand.

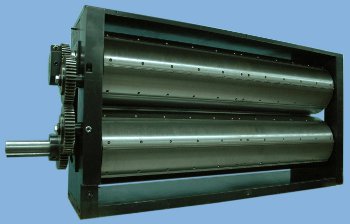

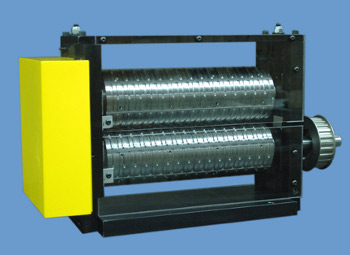

Quick change scoring/embossing heads for pleat sizes from .750" (19mm) to 3.00" (76.2mm)
Collector screws auto phased to peat via PLC adjusted servo drives
Auto cut to exact pleat count (+/ - 0) accuracy)
12" (304.8mm) maximum paper strand width
Output to 3000 pleats/min. or 375 FPM web speed
PLC available with programmed Bi-Lingual screen

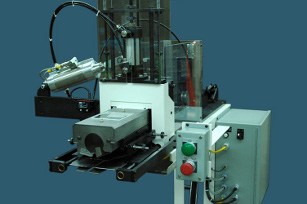

Automatic Clip, Form and Apply Machine For pleat heights from 3/8" through 1 ¾". Positions over top of conveyer for easy operator access and is available in any length between 4" and 18". Accommodates coil stock from ½" to 1" wide. Maximum operator rate: 1200 pieces per hour.
